AADGraphActivityLogs in Microsoft Sentinel

AADGraphActivityLogs should now finally populate data after having been first spotted in the wild over a year ago.

The table covers legacy Azure AD Graph traffic to https://graph.windows.net, which is useful if you are still cleaning up old tools, old apps, or old habits.

If you’re wondering if MicrosoftGraphActivityLogs doesn’t already cover this, that table gives us visibility into graph.microsoft.com. AADGraphActivityLogs is the missing “link” for the legacy side.

Quick info

Item	Value
Table reference	AADGraphActivityLogs
Sample queries	Queries for the AADGraphActivityLogs table
Resource type	`microsoft.azureadgraph/tenants`
Categories	`Audit`, `Security`
Solution	`LogManagement`

Sample data

In order to generate some data for myself, I landed on two tools to help me generate some noise:

AADInternals
ROADTools

I’m running some simple enumeration queries with both tools.

Generating sample data with AADInternals

For AADInternals, I wanted requests that were obviously AADInternals in the log, so I used the module’s Graph helpers instead of plain Invoke-RestMethod.

Install-Module AADInternals -Scope CurrentUser
Import-Module AADInternals

$modulePath = (Get-InstalledModule -Name AADInternals).InstalledLocation
. (Join-Path $modulePath 'AccessToken.ps1')
. (Join-Path $modulePath 'GraphAPI_utils.ps1')
. (Join-Path $modulePath 'GraphAPI.ps1')

$token = az account get-access-token --resource https://graph.windows.net --query accessToken -o tsv

Get-TenantDetails -AccessToken $token
Get-AADUsers -AccessToken $token | Select-Object -First 10
Get-Devices -AccessToken $token | Select-Object -First 10

Generating sample data with with ROADtools

ROADtools will hopefully produce help us produce a bit of dB noise.

python -m pip install roadrecon

$graphToken = az account get-access-token --resource https://graph.windows.net --query accessToken -o tsv

python -m roadtools.roadrecon.main auth --access-token $graphToken -f roadrecon-auth.json
python -m roadtools.roadrecon.main gather -f roadrecon-auth.json -d roadrecon.db -t <tenant-id>

Detection queries

These queries are aimed at simply detecting the sample data I generated above, so they shouldn’t be copied as-is for use as detection, as they might not generate a lot of real alerts since they rely on tool-default user agents.

Detect AADInternals

AADGraphActivityLogs
| where UserAgent == "AADInternals"
| extend TopLevelResource = tostring(split(split(RequestUri, "?")[0], "/")[3])
| project TimeGenerated, RequestMethod, RequestUri, TopLevelResource, AppId, UserId, CallerIpAddress, UserAgent, SessionId, SignInActivityId, ResponseStatusCode
| sort by TimeGenerated desc

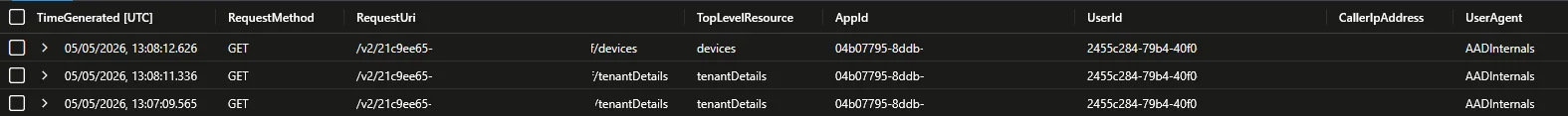

Example output, anonymized:

aadgraph query1

Detect ROADrecon

AADGraphActivityLogs
| extend TopLevelResource = tostring(split(split(RequestUri, "?")[0], "/")[3])
| summarize Requests = count(), DistinctResources = dcount(TopLevelResource), ResourceSet = make_set(TopLevelResource, 20), FirstSeen = min(TimeGenerated), LastSeen = max(TimeGenerated) by AppId, UserId, CallerIpAddress, UserAgent, ActorType, SessionId, SignInActivityId
| where UserAgent has "aiohttp" or (Requests >= 500 and DistinctResources >= 10)
| sort by Requests desc

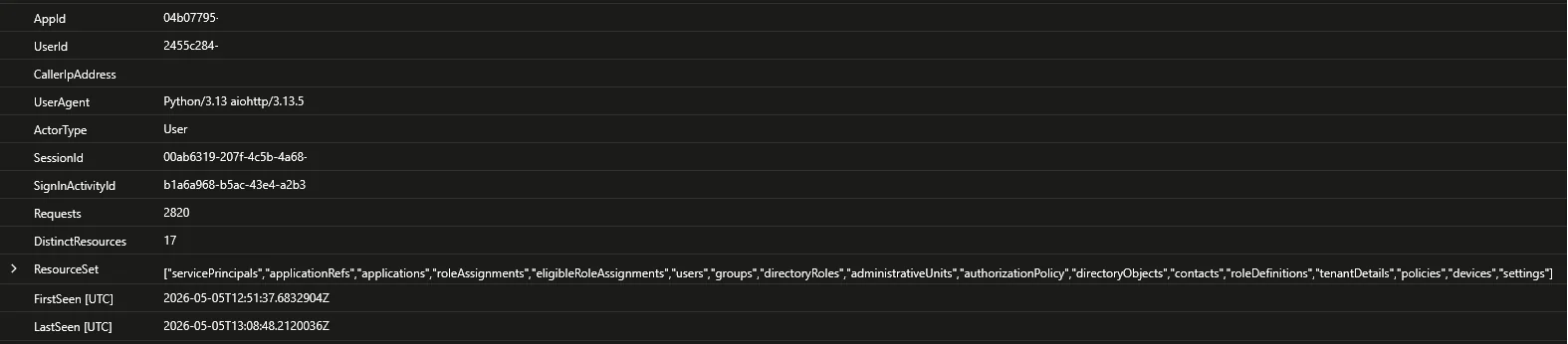

Example output, anonymized:

aadgraph query2

I took some inspiration from a recent post by Invictus IR. The detection uses either the default aiohttp user agent, or a short-window endpoint list if the operator spoofs the user agent. I kept the query here a bit broader by using resource breadth instead of a fixed list.

Correlate tool traffic with SigninLogs

let ToolTraffic =
    AADGraphActivityLogs
    | where UserAgent in ("AADInternals", "Python/3.13 aiohttp/3.13.5")
    | extend JoinSignInActivityId = trim_end(@"=", SignInActivityId)
    | project AadGraphTime = TimeGenerated, RequestUri, AppId, UserId, CallerIpAddress, UserAgent, ActorType, SessionId, SignInActivityId, JoinSignInActivityId, ResponseStatusCode;
ToolTraffic
| join kind=leftouter (
    union isfuzzy=true
        (SigninLogs
        | project SigninTime = TimeGenerated, UserPrincipalName, AppDisplayName, IPAddress, SessionId, JoinSignInActivityId = UniqueTokenIdentifier, ConditionalAccessStatus, ResultType, ResultDescription, SigninSource = "SigninLogs"),
        (AADNonInteractiveUserSignInLogs
        | project SigninTime = TimeGenerated, UserPrincipalName, AppDisplayName, IPAddress, SessionId, JoinSignInActivityId = Id, ConditionalAccessStatus, ResultType, ResultDescription, SigninSource = "AADNonInteractiveUserSignInLogs")
) on JoinSignInActivityId
| project AadGraphTime, SigninTime, RequestUri, AppId, UserId, CallerIpAddress, UserAgent, ActorType, AadGraphSessionId = SessionId, SignInActivityId, UserPrincipalName, AppDisplayName, SigninIp = IPAddress, ConditionalAccessStatus, ResultType, ResultDescription, SigninSource
| sort by AadGraphTime desc

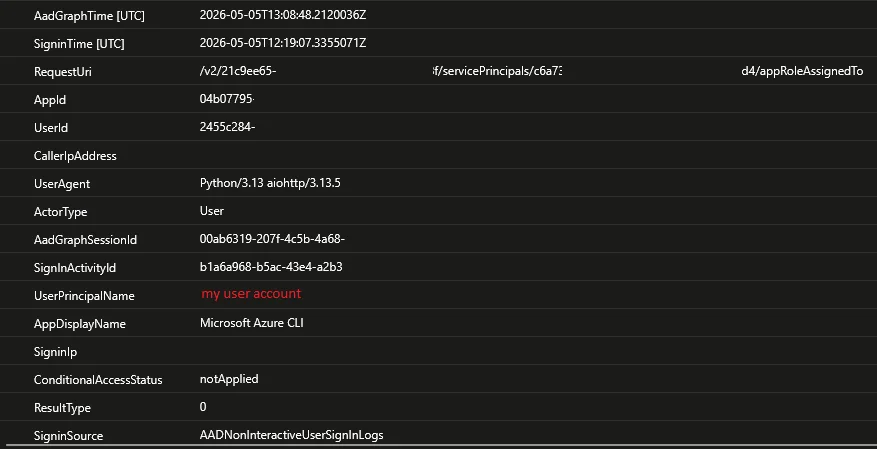

Example output:

aadgraph query3

Again, some useful insights from Invictus IR for this query: AADGraphActivityLogs.SignInActivityId may keep trailing == padding while SigninLogs.UniqueTokenIdentifier does not, so strip trailing = first. When I checked, there was never an instance of this happening, but I had a small sample size so for now I’ll keep the trim going.

Correlation matrix

This is current based on my testing as of 05/05/2026, but might be updated in the future.

Field in `AADGraphActivityLogs`	Also present in	FieldName (if not the same)	Why it matters
`SessionId`	`SigninLogs`, `MicrosoftGraphActivityLogs`, `AADNonInteractiveUserSignInLogs`, Unified Audit Log	N/A	Best documented session-level pivot across sign-in and Graph activity data.
`SignInActivityId`	`MicrosoftGraphActivityLogs`	N/A	Same field name in both Graph activity tables.
`SignInActivityId`	`SigninLogs`	`UniqueTokenIdentifier`	Microsoft documents `UniqueTokenIdentifier` in sign-in logs as the UTI claim, and maps that same claim to `SignInActivityId` in Microsoft Graph activity logs. `AADGraphActivityLogs` exposes `SignInActivityId`, so this is the closest documented token-level pivot. Normalize trailing `=` first before joining.
`SignInActivityId`	`AADNonInteractiveUserSignInLogs`	`Id`	In this table the `SignInActivityId` is just referred to as `Id` according to the schema.
`CorrelationId`	`SigninLogs`, `AuditLogs`	N/A	Useful for some client/server tracing, but it is not the same join key as `SessionId` or `SignInActivityId`.

Closing thoughts

As much as I’d like to see Azure AD Graph go away, this is a welcome addition to any security outfit to fill a gap, as noted by Fabian Bader in the initial tweet when this was first discovered.

The queries presented in this blog is mostly to detect people running the named out-of-the-box without modifications. It could be a decent place to start for some more advanced queries, detection rules in some small environments or simply as hunting queries.
